Add to Basket Combination Woodworker

Product Description

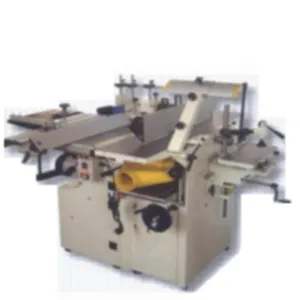

* A combination woodworker is exactly what is says it is, a combination of planer/thicknesser, sawbench, spindle moulder and mortiser, all in one compact and multifunction unit.
SPECIFICATIONS
*Motor - 1# 1100W, 50Hz, 1ph, TEFC motor
*Motor - 2# 1100W, 50Hz, 1ph, TEFC motor, R+L

For more details, please kindly visit our website.

In addition, we also supply the following products:
(1) Measuring Tools------Vernier Calipers, Electronic Digital Calipers, Micrometers, Dial Indicators, Squares, Protractors, Gages, etc
(2) Machinery Accessories------Tool Post and Holder, Collects, Chucks, Drill Chucks, Milling Arbors, Sleeves, Vises, Working Tables, etc
(3) Cutting Tools------including Drills, End Mills, Milling Cutters, Slitting Saws, Saw Blades, Reamers, Taps & Dies, Tool Bits, Carbide Inserts, etc
(4) Machinery------Metal Working Machinery, Woodworking Machinery, Shear Bending and Rolling Machine, etc

 PLANER THICKNESSER
 Planer table size (mm)                            250x1085
Thicknesser table size (mm)                  250x600
Cutter block dia. (mm)                              75
Feeding block dia. (mm)                          32
Cutting knife (pcs)                                     3
Fence tilt                                                      0°-45°
Dust chute dia. (mm)                               100
Max planer width (mm)                            250
Max cutting depth (mm)                           2.5
Max thicknesser height (mm)                180
Cutter block speed (rpm)                       4000
Feed speed (m/min)                               8














 SPINDLE MOULDER
 (Tooling not supplied)
Spindle speed (rpm)              6600
Spindle dia.                              30
Spindle travel (mm)                90
Max cutter dia. (mm)               130







 SAWBENCH
 Blade speed (rpm)               4050
Blade size (mm)                    250x30x2.2x20
Table size (mm)                    950x790(1060)
Max cutting height (mm)      85(90° degree)
                                                 60(45° degree)







 MORTISING
 Bit housing (mm)                     17
Table size (mm)                        161x368
Vertical stroke (mm)                 0-80
Lateral stroke (mm)                  0-140
Table travel up/down (mm)     0-160
